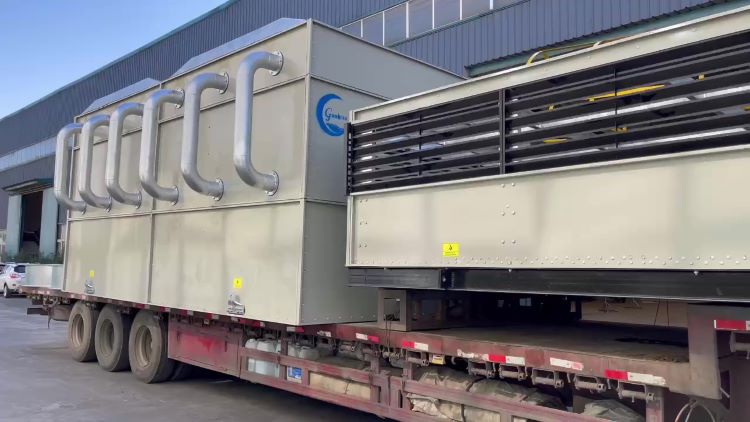

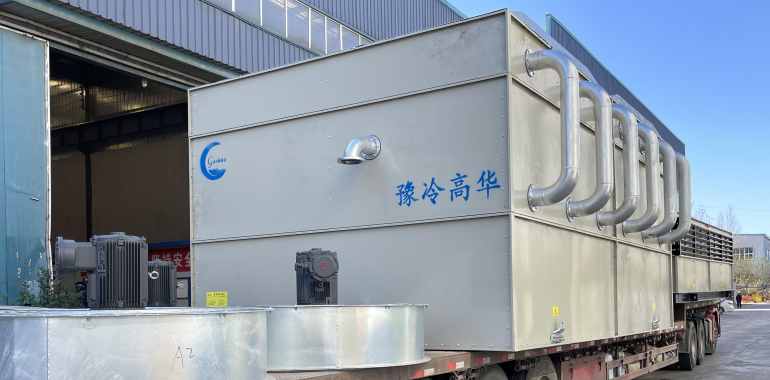

This evaporative condenser is equipped with 2 sets fans one water pump with motor.The technical data are as following:

Fan technical data:

Power: 7.5kW/ set,

Air volume: 900003/h/set,

Heat exchange: 2300KW，

Fan blade material: hollow aluminum alloy, meets the requirements of corrosion resistance, high temperature resistance and long-term operation.

Motor technical data:

Protection class:1P55

Insulation class: F,

Explosion-proof class：EXDIIBT4,

Motor type: latest energy-saving motor.

Circulate water pump with motor:

Power:5.5kw,

Water flow:135m3/h,

Protection grade:IP 55,

Insulation class: F,

Explosion-proof class：EXDIIBT4.

Material:

Evaporative condenser coil: 10# seamless steel pipe hot dip galvanized,

Drift eliminator: FRP,

Guard plate: galvanized sheet with electrostatic spray.
