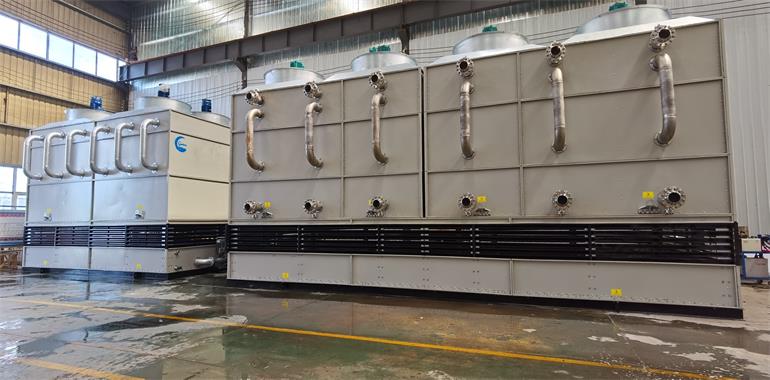

The two compound-type evaporative condensers will be respectively used in the distillation and conversion sections of the methanol workshop of the coal chemical plant.

The heat exchange tube of the evaporative condenser used in the distilllation section is made of carbon steel, drift eliminators are FRP drift eliminators, and protective frame and water tank uses galvanized aluminum sheet, which improve anti corrosion ability and life-time. The evaporative condenser is equipped with 4 sets of fans with 7.5kw power.

The heat exchange tube of evaporative condenser used in the conversion sections is made of stainless steel, drift eliminators are FRP drift eliminators and protective frame and water tank used the same material as in the distillation sections. And this evaporative condenser is equipped with 8 sets of axial fans and 2 sets of water pumps.

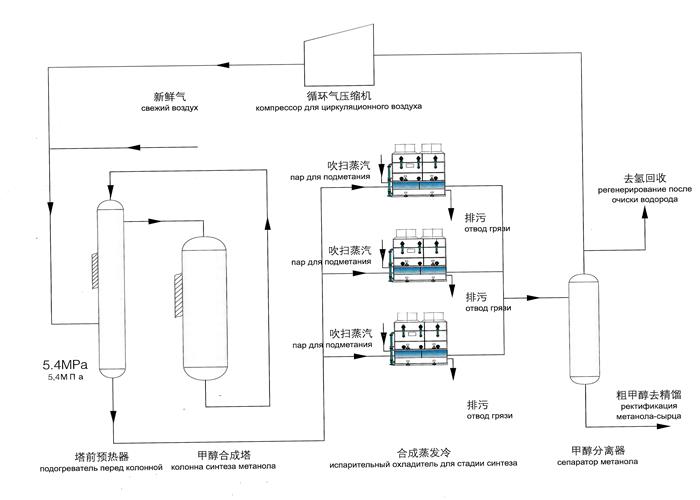

                                                                                                                          Process flow of methanol distillation section

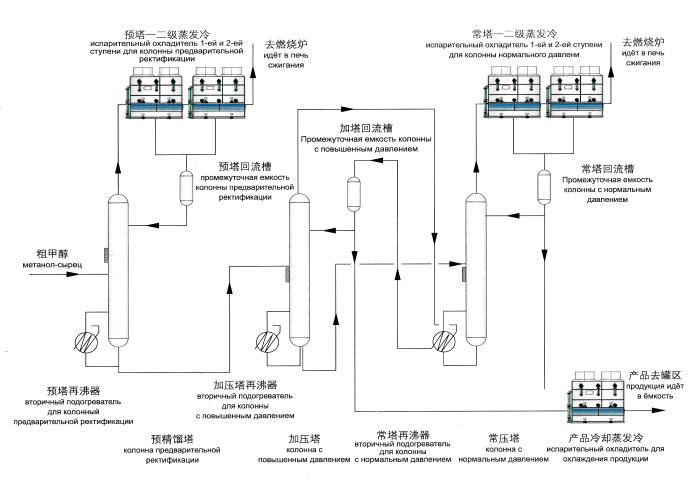

                                                                                                                        Process flow of methanol conversion section
