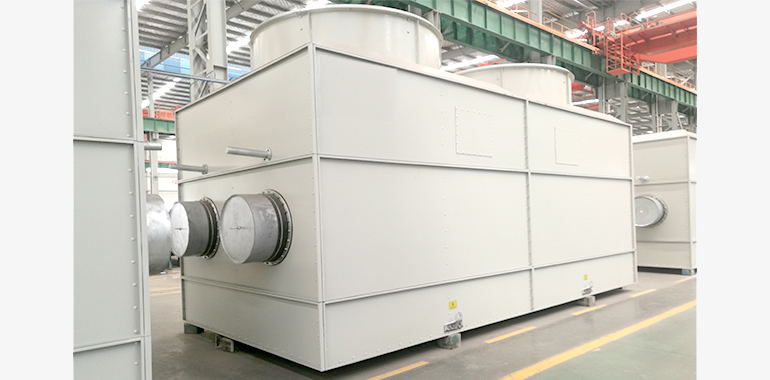

Evaporation condenser is a high-efficiency, energy-saving, water-saving and environment-friendly condensing equipment, which uses the condensation inside the tube and the evaporation outside the tube as the main heat exchange mode.

The Evaporative condenser integrates the condenser, cooling tower, circulating water pump and the pump house all into one while maintaining a compact design. It can provide water usage savings of 30%-50% and electricity savings of 10%-20%. It takes up a small area and is easy to operate and maintain.

Application

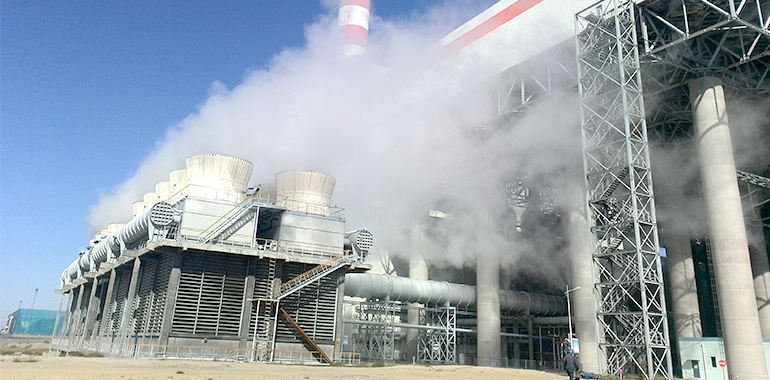

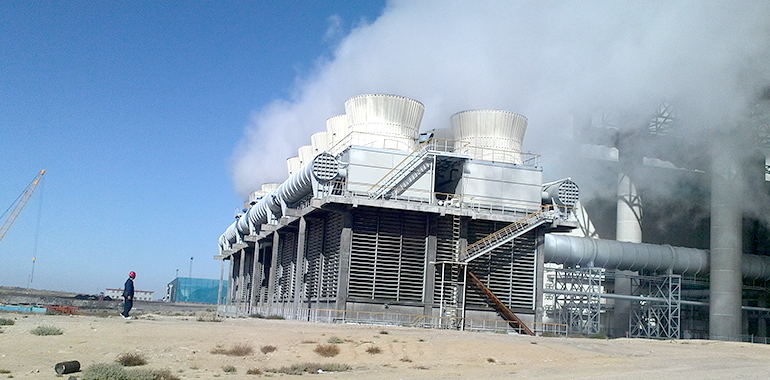

Replaces water condenser system; used in direct air-cooled peak condensing equipment.

Features

• High-efficiency, energy-saving, water-saving and environment-friendly
• small area and easy to operate and maintain.
• Custom-made according to customers' requirements

Working flow

The air is sucked into the evaporative condenser by axial fan through grill, sweeps past the heat exchange tube bundles and exhausts heat. Drift Eliminator under fan is to prevent water droplets from being taken away with the air.

Spray water falls into the tank from the top of the evaporative condenser and is recycled through spray water pump. When it falls, spray water absorbs heat from the tube and is evaporated at the same time. Spray water which has been evaporated is automatically replenished through the water compensation valve.
