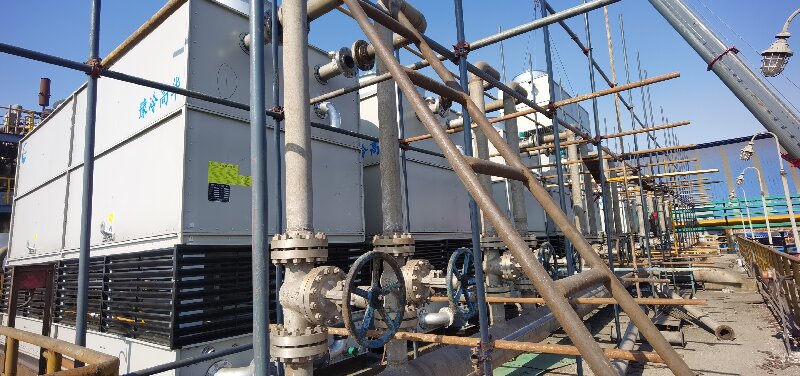

Overview

JZL/ZF evaporative condenserfan is an axial-flow fan made from new materials and new technology, and has the features of high efficiency, low noise, simple construction and light weight. Impellers below N9.0 are manufactured with wing-type twisted blades, which are made of aluminum alloy by die casting. N8.0 and N9.0 impellers can be madeof composite fiber blades.Impellers above No9.0 are manufactured with wingt type hollow extruded aluminum alloy blades and steel wheel hubs. N10.0-15.0 impellers may be made of composite fiber blades with aluminum alloy wheel hubs. Hot dip galvanized air duct and moisture-proof and low-temperature resistant motor are available.

The structure of the fan

Impeller assembly: Impellers below No9.0 are made of die-cast aluminum alloy, while No8.0 and 9.0 blades are made ofcomposite fiber.lmpellers above No9.0 are combined wheel hubs with extruded aluminum profile blades while No10.0-15.0 blades are made of composite fiber.

Main airduct:Made of steel plate, flanged by die and reinforced by flange ring. Common steel plate or stainless steel, hot-dip galvanizing.
Support frame: Support the fan motor in the air duct to make the clearance between the air duct and the impeller uniform.
Junction box: Made of high strength nylon or cast iron.
Wiring method: Install junction box or motor junction box on the air duct.
Structure type:Pipeline (Or machine according to the size required by the user).
Motor:Moisture-proof and low-temperature resistant three-phase asynchronous motor for cooling fans, cast iron shel lP55.220V-660V/50Hz or 60Hz customizable based on customer demands.
Protective net: Provided at the fan outlet, surface subject to hot-dip galvanizing or cleaning
