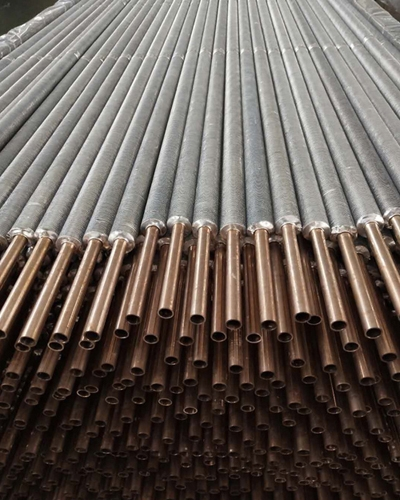

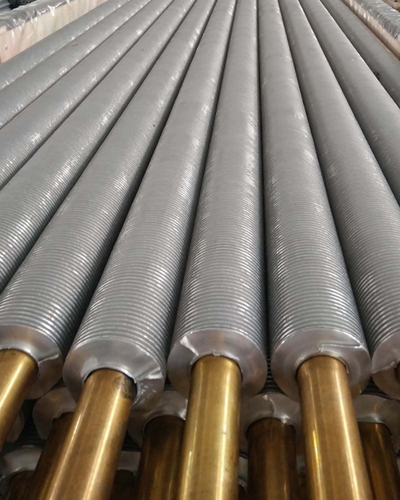

Laser welding of finned tubes adopts the laser welding process, which can weld the light tubes and fins with thinner wall thickness and denser fin pitch. The thinner light tubes and denser fins can improve the heat transfer efficiency. Good penetration rate and resistance to being pulled off are the basis of good service life.
Laser welding of finned tubes can realize welding between different metals, which can achieve good heat transfer efficiency for customers under different working conditions. Thin wall thickness is also one of the ways to save costs.
Processing dimensions and parameters of laser welded pipe
Material name: stainless steel+stainless steel, stainless steel+carbon steel,
stainless steel+copper, carbon steel+carbon steel, carbon steel+copper, copper+copper
|
Specifications |
Wall thickness mm |
Fin space mm |
Fin height mm |
Fin thickness mm |
|
Φ10 |
1.2-2 |
2-3.5 |
＜5 |
0.3-1 |
|
Φ12 |
＜6 |
|||
|
Φ16 |
＜8 |
|||
|
Φ19 |
＞1.0 |
2-5 |
＜9 |
0.5-1 |
|
Φ22 |
＞1.2 |
2-5 |
＜11 |
|
|
Φ25 |
＞1.3 |
2-6 |
＜12.5 |
|
|
Φ28 |
＞1.5 |
2-8 |
＜14 |
0.8-1.2 |
|
Φ32 |
＞1.5 |
2-8 |
＜16 |
|
|
Φ38 |
＞18 |
2-10 |
＜19 |
|
|
Φ45 |
＞2 |
2-10 |
＜23 |
